The holy grail of sound seems to be analog. Why? Because it holds more clarity? Hardly. Because it more accurately captures sound? Nope. Is it because your brain wants to hear all those pops, muddiness, and fizzles? Precisely. Effects are kinda the same. Though diligent programmers have been able to model digital delay and echo in every conceivable form with astronomically long delay times, there is still a demand for the old, limited use, barely functional analog delay effects for making music. Just look at eBay. The prices are high for what is ostensibly outdated technology. And what can I say, I’m one of those jerks who totally goes for it.
The DOD FX90 analog delay is not one of those delays one would call coveted, as it sells used for fairly cheap… why? I’m not sure. I like the delay sound on it. With some coaxing, it will run away and self-oscillate with the best of them. Likely, it’s not that coveted because there are many available. In the after-market for discontinued effects, if it’s rare, it must be AMAZING!
The actual circuit creates makes for a pleasing, warm and dark analog delay, but the construction of the pedal itself is sub-par. I scored a couple for cheap. That is to say, I found them left behind in our jam space and no one claimed them. They didn’t work, so I set out to get ’em going again.
[contextly_sidebar id=”aA4R0svYyDg4DSVaO6oNomWbQ7Pni7HS”]First, off, I’m not genius (yes I am). I got this pedal working again by re-soldering some loose 9V battery leads. They’d been jerked around because DOD never made a battery case cover that didn’t get lost. And how many pedals and electronics gear now exist in landfills because people wouldn’t look at this most obvious problem? Without electricity, you can’t have electronics. It’s fundamental, like Marvel being better than DC.
Once I got the pedal functioning again, I had to play with its guts a bit and learn a bit more about delays. Anything worth doing is worth overdoing.
Analog delay pedals use BBD (Bucket Brigade) IC chips that were invented by Philips in 1969 for a myriad of purposes, guitar effects pedals probably being last on the list. In fact, many of the chips were put it into televisions and public address systems not as an effect to be noticed, but to make things sound more natural.
They use a series of microscopic transistor-capacitor pairs that pass the signal out and to the next series pair, hence the name; the pairs act like an old-timey, fire-fighting bucket brigade with a signal in place of buckets. The transistors split the signal between the output and the capacitors that delay it before it gets to the next pair.
The capacitors in a BBD chip cut the high frequencies off each repetition and give analog delays their distinctly dark tone. It’s much the same way a capacitor on a tone knob cuts the highs coming out of a guitar, the way a capacitor can be added to darken a digital delay, or the way Keanu Reeves and Mark Wahlberg can dull an otherwise intelligent movie.
The DOD FX90 analog delay uses a Panasonic MN3005, long out of production. Strictly speaking, it isn’t “analog,” like tape delay. BBD IC chips are solid-state technology. Well, today’s “hardcore” doesn’t sound anything like Agnostic Front. You have to take the evolution of nomenclature with a grain of salt.
These solid-state IC delay chips were generally marketed for pedals as having a maximum 300 milliseconds of delay time. That’s a physical limit based on the number of transistors and capacitors that can be fit inside a single chip. This 300ms delay is more of recommendation, kinda like the speed limit on Interstate 5. They sound BEST when dialed in for no more than 300 milliseconds. Like most things designed to be used by musicians, the analog delay pedals were designed to be retard-proof. Each FX90 unit sold should sound the same. They are dialed in at 300ms, but that limit can be pushed a bit by playing with a trim pot inside. This is not recommended by anyone… except me.

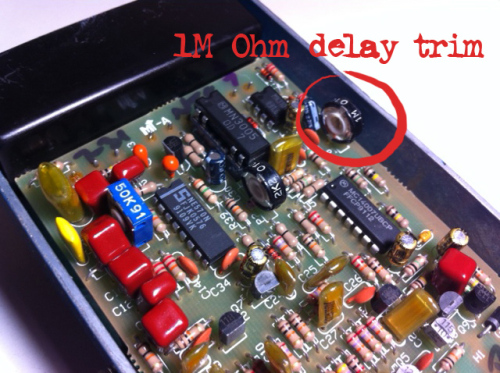

By fiddling with the 1M Ohm delay trimpot, you can increase the delay time dramatically. Of course, your delay is going to start sounding wonky as fuck the further you push it. The delays will warble, bend, sometimes speed up a bit, sometimes slow down, and definitely sound like they come from a Nintendo 8 bit sound card.
If that’s what you’re looking for, you just found gold. Otherwise, keep the delay time within reason.
The other thing these chips are meant to do is provide a nice, decaying echo. C’mon, what’s the fun in that? Another adjustment on another trimpot and you can get it to self-oscillate: the point where the delay feeds back into itself. Turn the knob labeled “Repeat” all the way up, and then adjust the 2K2 Ohm feedback trimpot until the repeats don’t end, like episodes of Two and Half Men.
Once you have it adjusted to self-oscillate, the pedal can have the delays and repeats all the way up until the echoes start to race away. Adjust the delay slowly along with the mix knob, and you can get a sweet harmonic hum out of the pedal. It’s not super useful for a power metal band, I suppose, but great if you just wanna make some noise.
My FX90 self-oscillates to a perfect D note. Whether that’s because of my guitar or the chip, I know not. When I adjust the mix knob correctly, I can play over it as it drones. Not play well, but you get the point.
Once I got this pedal going, I really liked it. I wanted it on my pedal board. The last hurdle was the shitty DOD switching mechanism, which I’ve railed about before on other DOD pedals. Like BOSS pedals, DOD employs a jfet electronic switching mechanism. Unlike BOSS, DOD’s momentary switch is a piece of shit that breaks after some time. There’s also the conceit I have against buffered pedals, so it was time to mod this pedal for true-bypass.
The first hurdle with true-bypassing any pedal that uses an electronic switch is getting the effect to always be “on.” Usually this means reading a schematic and putting jumpers in place of of the transistors used for switching. Luckily, the FX90 effect is powered “on” as soon as the pedal is plugged in. Fuck the schematic, this bitch is ready to go. All that needs be done is wire up a 3PDT foot switch to the right connections and have at.Well, there also has to be space made inside this tiny pedal for a big 3PDT foot switch. One solution is to rehouse the entire pedal in a new enclosure. I wanted to keep the pedal in its original enclosure, though, so I had some very literal circuit bending to do.
Not having the original battery cover, I ditched the battery compartment entirely. Who wants to run a delay on batteries, anyway? They eat them up. I installed in its place a much tinier, and more standard, 2.1x5mm BOSS style barrel jack. This was wired in parallel with the original power jack. I installed it on a piece of sheet metal I glued into place. This is totally unnecessary if you want to use a 9V adapter with a 1/8″ plug.
Next, I actually bent the tines of the pots that connected to the circuit board. This had to be done carefully, lest I make any new contact points, or worse, just broke the tines. I could have cut the tines and soldered the pots in with leads. Then the circuit board would have been floating without anchor inside the enclosure. By bending the pots, I was able to still use them as spacers.
I bent all three until the circuit board rested towards the back of the enclosure. This almost made room enough for the switch. More daunting, I had to cut a piece of the circuit board out. I did have to trim back some of the contacts for a couple leads, but I left enough behind in order to still use them. Like I said, this was daunting.
Once the room was made, I threw away the original momentary switch. I pulled the other leads from the input jack and the circuit board and wired up the 3PDT foot switch as shown in the following diagram.
And the real thing just BARELY fits. It was important to add the ground lead to the middle poles in order to take the effect to ground when it was switched off. Initially I had skipped this step and got a nasty pop every time I engaged the effect. That’s why it’s attached to a ground on the opposite side of the circuit board… because I couldn’t be bothered to undo the whole thing once I found my mistake. Lazy!
Initially I just squeezed the 3PDT switch through a hole that was already in the enclosure to engage the original momentary switch. I had to trim the washer a bit, but I didn’t find this aesthetically pleasing.
Eventually, I drilled a hole through the old foot stomp plate and fit the new 3PDT switch through that. Now, this pedal rests comfortably on my board, ready to be splattered in blood as all my lovelies are.
So much work, and so little care. It’s just stuff to make noise, after all. Beautiful, analog noise.
